When playing a game your bot can use the debug commands to add information to the camera, minimap and the debug terminal.

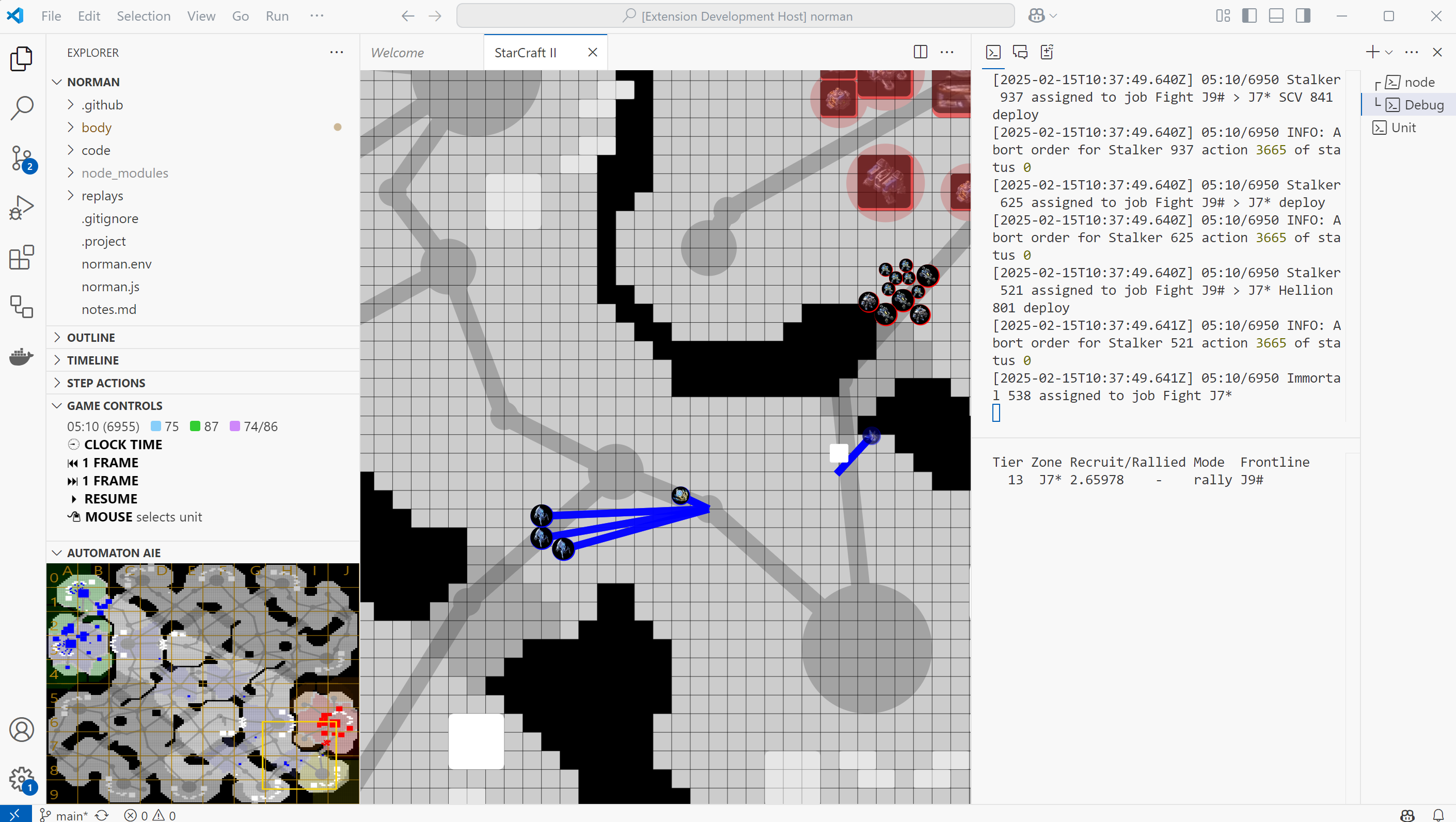

This screenshot demonstrates:

  • A dynamic list of “battles” the bot engages in - as text in the Debug terminal to the right
  • The coordinates of “zones” on the map and the path between them - as lines in the camera view
  • The “alert levels” of the “zones” on the map - as colors on the minimap

Debug info

The following debug commands are supported at the moment:

  • Debug draw lines will show lines on camera and minimap
  • Debug draw spheres will show circles on camera and minimap
  • Debug draw text
    • with virtual position - virtualPos - will show in the Debug terminal. The x coordinate will be used to split debug info into tabs in the future
    • without virtual or world position - will be parsed as JSON object and interpreted as a shape or a toggle

Shapes

The following shapes can be displayed with debug draw text command without virtual or world position:

  • arrow - Displays an arrow from point x1, y1 to point x2, y2 with starting point of radius r. Example: { "shape": "arrow", "x1": 50, "y1": 50, "x2": 100, "y2": 100, "r": 10, "color": "yellow" }
  • cell - Colors point x, y on the map. Example: { "shape": "cell", "x": 100, "y": 100, "color": "blue" }
  • circle - Displays a circle with center point x, y and radius r. Example: { "shape": "circle", "x": 100, "y": 100, "r": 20, "color": "green" }
  • line - Displays a line from point x1, y1 to point x2, y2. Example: { "shape": "line", "x1": 50, "y1": 50, "x2": 100, "y2": 100, "width": 10, "color": "red" }
  • polygon - Displays a polygon. Example: { "shape": "polygon", "points": [50, 50, 100, 50, 100, 100], "opacity": 0.8 }
  • sector - Colors the sector at column col and row row. Example: { "shape": "sector", "col": 0, "row": 2, "color": "green" }

Shapes arrow, circle, line, and polygon support the optional properties:

  • color - The color of the shape. Defaults to gold
  • filled - When true fills the shape with the color. Otherwise, colors its contour. Ignored for line shapes. Defaults to false
  • width - The stroke width when the shape is not filled. Defaults to 1
  • dotted - When true and the shape is not filled displays the contour of the shape with a dotted line.
  • opacity - The opacity level of the coloring. Defaults to 0.2
  • pulsing - When true displays the shape as pulsating. Defaults to false

Toggles

Your bot can specify feature toggles to give you control over the debug information it adds to the camera, minimap and the debug terminal, or even control over its play. A toggle is specified by sending a debug draw text without virtual or world position in the following format:

{ "toggle": "<toggle key>, "label": "<icon or text>", "description": "<tooltip>", "on": <true or false> }

Your bot needs to send the above every game loop as long as the toggles are to be available.

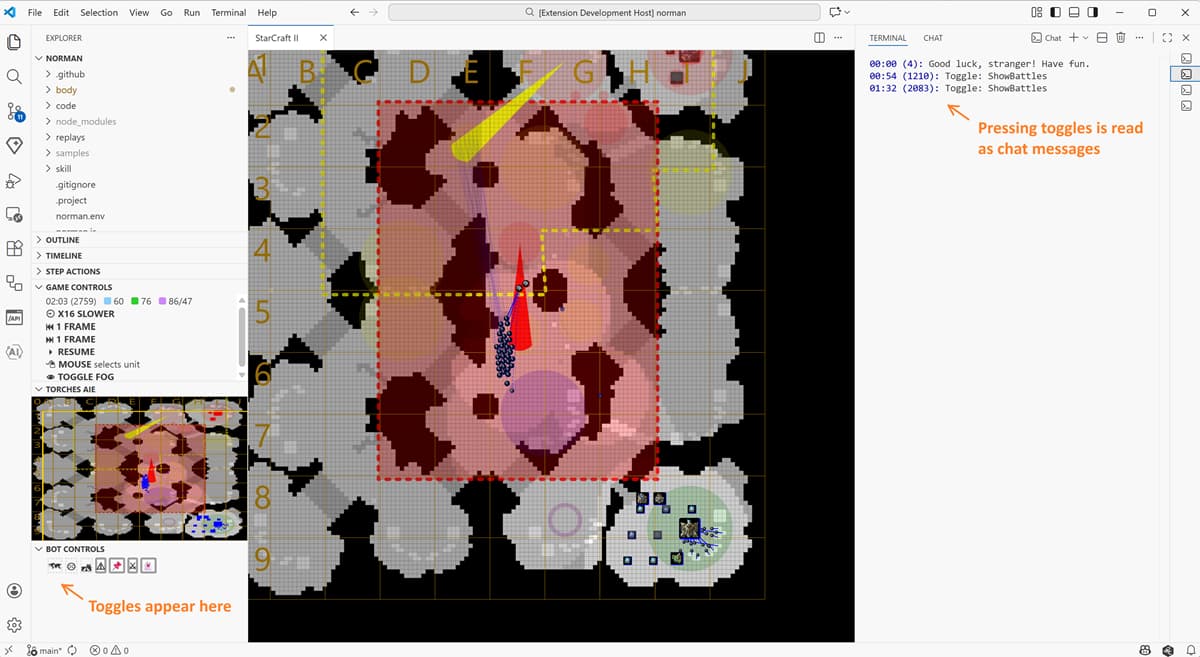

The toggles appear in the left bottom view titled “Bot Controls”. When you press the toggle, your bot will see this in the game observation as a chat message in the form:

Toggle: <toggle key>

Feature toggles
